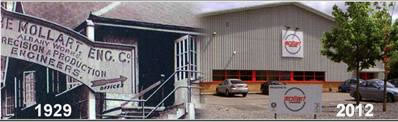

Mollart America is the US based sales, service and support operation of Mollart Engineering Ltd., a company rich in experience founded over 80 years ago.

Mollart design and build deep hole gun drilling and deep hole BTA machines in various configurations.

Our focus is on applications to provide our customers the most efficient solutions based on the knowledge of the process gained from Mollart Engineering's extensive in-house subcontract operations, incorporating our machines as well as tooling we are licensed to manufacturer from botek of Germany, the world's leading Deep Hole Drilling Tooling manufacturers to provide our customers with the best turnkey solutions.

During IMTS 2010, we are introducing our Trepanning Machine.  We invite and welcome you to our booth (N-6031) to personally familiarize you with our latest innovations and developments in technology.

A team of experts will be on hand and are looking forward to meeting you to offer assistance and share interesting product information.  Let us know if you would like a specific date and time.



Affordable TREPANNING Center

Machine a bore between 3" (80mm) and 12" (300mm) diameter by up to 24" (600mm) deep from each end from solid to create a section of tube from up to 24" (600mm) diameter bar or billet and recover the core for further use can be achieved through our CNC Trepanning Center

Versatility you can justify...

• Drilling 0.1" - 1.4"Ø (3mm - 35mm) at depths to 60" (1500mm).

• Incorporate a low cost, quick-change spindle adaptor kit converts this machine to perform additional tasks such as milling, rigid tapping and thread milling which increases the machines overall versatility.

• For water feed cavities in bases for dies and molds and tube plates, and for off-center hole and pattern drilling.

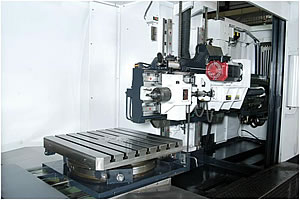

• This level of versatility can be further enhanced with the ability to incorporate a 4th axis rotary table and programmable tilting spindle head (+24 to -15 degrees) to accommodate compound angle hole requirements

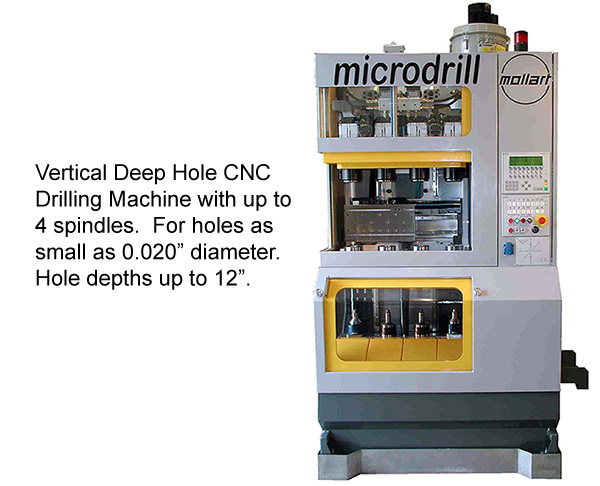

Innovative & unique to the industry - VERTICAL for 0.5mm diameter holes

• Drill 0.020" (0.5mm) hole diameter
• Depths of 12" (300mm)
• 4-spindle vertical
• Compact machine
• Automatic loading system
• Angular drilling

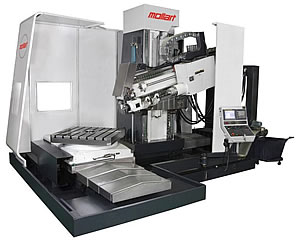

Large capacity productivity without sacrificing flexibility!

• 6-axis bed & column type deep hole gun drilling / machining center
• Drilling 0.1" - 3.3"Ø (3mm - 85mm) up to 80" (2000mm) depth
• Integrated milling spindle
• Automatic tool changer
• Work table 80" x 100" (2000mm x 2500mm)
• Table Load 35,200 lbs (16,000 kg)
• A-axis 15 degree tilt (optional 25 degree tilt)

Product Range

• From 0.020" (0.5mm) drilling Ø
• Up to 16 Spindle Configuration
• Up to 25,000 RPM Spindle Speed Range
• Indexable, BTA/STS, Ejector, Gun Drilling, Trepanning
• Bed-, Knee- and Column- type
• Vertical and Horizontal Spindles
• GE Fanuc CNC (Siemens or Heidenhain)
• Automatic Tool Changer including up to 60" long Gun Drills
• Secondary Spindle Operations Mill, Counterbore, Tap, Thread, Probe
• Automatic Loading Systems (Robotic, Gantry, Pallet or Walking Beam)

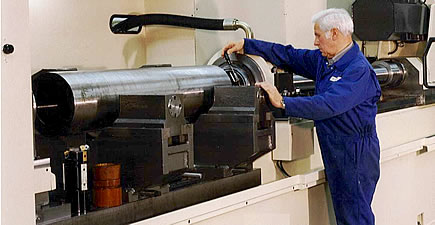

Large range Deep Hole Boring Machines

• Up to 16" (400mm) drilling Ø
• Up to 100-ft (30m) deep
• Solid Drilling
• Counter-Boring
• Skive & Burnish
• Trepanning
• Skiving
• Pull Counter Boring
• Roller Burnishing
• Bottle Boring

Looking for a Quick Delivery machine?

• 2 or 4 spindle 3 axes drilling 0.47"Ø (12mm) x 24" (600mm) depth
• 2 spindle shaft drilling 0.47"Ø (12mm) x 20" (500mm) depth
• 1 spindle shaft drilling 1"Ø (25mm) x 47" (1200mm) depth
• 1 or 2 spindle moveable table drilling to 1"Ø (25mm) x 20" (500mm) depth
• 1 spindle BTA drilling 3.9"Ø (100mm), trepan 5.5"Ø (140mm) x 105" (2666mm) drilling head stroke

Recent Orders

• 4 spindle Vertical CNC gun drilling machine

Recent Installations

• 16 spindle CNC gun drilling machine
